Applications :
- Single Core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts.
Standards :
- BS 6853 -1a
- DIN 5510-1 1-4
- NFF 16-101 F0
- BS 6387
 |
 |

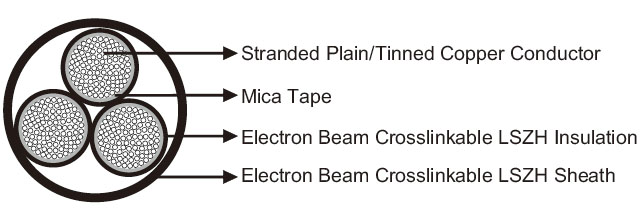

Construction :
- Conductors : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
- Flame Barrier : Mica tape.
- Insulation : Electron beam crosslinkable thin wall LSZH compound.
- Sheath : Electron beam crosslinkable LSZH compound.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm² 0.5 0.75 1.0 1.5 2.5 Maximum DC Conductor Resistance Ω/km 40.1 26.7 20.0 13.7 8.21 Voltage Rating KV 0.45/0.75
Mechanical and Thermal Properties :
- Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm).
- Temperature Range : -40°C to +120°C.
Dimensions and Weight :
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
Nominal Diameter of Strands No/mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| FRA-TW-0.5M-FR-3C0.5S | 3×0.5 | 16/0.20 | 0.56 | 5.8 | 41 |
| FRA-TW-0.5M-FR-26C0.5S | 26×0.5 | 16/0.20 | 0.56 | 14.7 | 297 |
| FRA-TW-0.5M-FR-5P0.5S | 5×2×0.5 | 16/0.20 | 0.56 | 12.9 | 178 |
| FRA-TW-0.5M-FR-2C0.75S | 2×0.75 | 24/0.20 | 0.58 | 5.9 | 40 |
| FRA-TW-0.5M-FR-4C0.75S | 4×0.75 | 24/0.20 | 0.58 | 7.05 | 75 |
| FRA-TW-0.5M-FR-8C0.75S | 8×0.75 | 24/0.20 | 0.58 | 9.3 | 125 |
| FRA-TW-0.5M-FR-2C1S | 2×1.0 | 32/0.20 | 0.63 | 6.5 | 61 |
| FRA-TW-0.5M-FR-2C1.5S | 2×1.5 | 30/0.25 | 0.66 | 7.1 | 81 |
| FRA-TW-0.5M-FR-3C1.5S | 3×1.5 | 30/0.25 | 0.66 | 7.7 | 99 |
| FRA-TW-0.5M-FR-5C1.5S | 5×1.5* | 30/0.25 | 0.66 | 9.5 | 150 |
| FRA-TW-0.5M-FR-6C1.5S | 6×1.5 | 30/0.25 | 0.66 | 10.7 | 188 |
| FRA-TW-0.5M-FR-7C1.5S(G/Y) | 7 G 1.5 | 30/0.25 | 0.66 | 10.3 | 190 |
| FRA-TW-0.5M-FR-12C1.5S(G/Y) | 12 G 1.5 | 30/0.25 | 0.66 | 13.8 | 319 |
| FRA-TW-0.5M-FR-20C1.5S | 20×1.5 | 30/0.25 | 0.66 | 17.8 | 533 |
| FRA-TW-0.5M-FR-25C1.5S | *25×1.5 | 30/0.25 | 0.66 | 19.6 | 630 |
| FRA-TW-0.5M-FR-37C1.5S | 37×1.5 | 30/0.25 | 0.66 | 22.6 | 889 |
| FRA-TW-0.5M-FR-3C2.5S(G/Y) | 3 G 2.5 | 50/0.25 | 0.63 | 8.5 | 135 |
| FRA-TW-0.5M-FR-12C2.5S(G/Y) | 12 G 2.5 | 50/0.25 | 0.63 | 15.9 | 460 |
| FRA-TW-0.5M-FR-25C2.5S(G/Y) | 25 G 2.5 | 50/0.25 | 0.63 | 22.2 | 900 |
*green/yellow cables can be offered as an option
G: green/yellow cables
 |
 |
 |
 |
 |
 |
Impact Resistant |
Highly Flexible |
UV Resistant |
Oil Resistant |
Weather Resistant |
Low Toxicity |
 |
 |
 |
|
|
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 |
Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453 |
